class 1 acc. to IEC 60584 class 2 acc. to IEC 60584
Response time
63% rt = 1,3 s
Max. process pressure (static)
at 20 °C: 100 bar (1.450 psi)
Operating temperature range
Type T: -270 °C ...400 °C (-454 °F ...752 °F) Type J: -210 °C ... 1.200 °C (-346 °F ...2.192 °F) Type E: -270 °C ... 1.000 °C (-454 °F ...1.832 °F) Type K: -270 °C ...1.372 °C (-454 °F ...2.500 °F) Type N: -270 °C ... 1.300 °C (-454 °F ...2.372 °F)
The high modular thermometer is used for several applications with harsh environments, e.g. in power plants, refineries or in the chemical or petrochemical industry. The robust device is designed for use within an existing thermowell. With different head transmitter it's a complete unit ready for use with enhanced measurement accuracy and reliability.

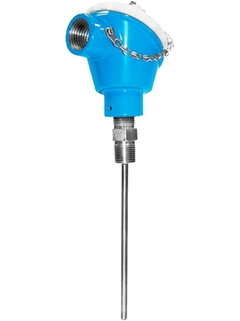

The TH55 temperature sensors are thermocouple assemblies, designed for use in all types of process industries, including heavy industries, due to their rugged design. They are made up of a magnesium oxide insulated thermocouple as a measurement probe and a thermowell made of barstock material.
The sensor assemblies can be used in process industries such as:
Chemicals
Petrochemicals
Power plants
Refineries
Offshore platforms
Benefits
One source shopping for temperature measurement solutions. World class transmitter with integrated sensor offering for heavy process industry applications.
Remove and install straight out of the box!
Improved galvanic isolation on most devices (2 kV).
Simplified model structure: Competitively priced, offers great value. Easy to order and reorder. A single model number includes sensor, thermowell and transmitter assembly for a complete point solution.
All iTEMP® transmitters provide long term stability ≤ 0.05% per year
Iplom SpA sought to optimize its refining process to extend catalyst life and to increase safety in a hydrodesulfurization (HDS) application through precise 3D temperature profiling.
TA20J - SS - w. or w/o. display TMT142 - aluminium - fieldhousing w. or w/o. display TMT162 - aluminium - fieldhousing w. or w/o. display TMT162 - SS - fieldhousing w. or w/o. display Alu - screwed cover w. chain - E+H blue PP plastic - screwed cover w. chain TA30H - aluminum w. or w/o. display
Thermowell / protection tube
to use with thermowell
Insert / probe
mineral insulated (MI), flexible
Outer diameter protection tube / Insert
1/4'' (6,35 mm)
Max. immersion length on request
up to 30" (762 mm) others on request
Material protection tube/ thermowell
Sensor sheath 316 Alloy 600
Optional coating
not applicable
Process connection
Thermowell connection male thread: NPT1/2"
Tip shape
straight
Surface roughness Ra
Not defined
Operating temperature range
Type T: -270 °C ...400 °C (-454 °F ...752 °F) Type J: -210 °C ... 1.200 °C (-346 °F ...2.192 °F) Type E: -270 °C ... 1.000 °C (-454 °F ...1.832 °F) Type K: -270 °C ...1.372 °C (-454 °F ...2.500 °F) Type N: -270 °C ... 1.300 °C (-454 °F ...2.372 °F)
Max. process pressure (static)
at 20 °C: 100 bar (1.450 psi)
Accuracy
class 1 acc. to IEC 60584 class 2 acc. to IEC 60584
Response time
63% rt = 1,3 s
Integration head transmitter
yes (4 … 20 mA; HART; PROFIBUS PA; FOUNDATION FIELDBUS)
