Cerabar PMC11

Gauge pressure
Cerabar PMC11

Cost-effective pressure transducer with ceramic sensor for measurement in gases or liquids

PMC11
Loading price
Prices temporarily unavailable
Price on request
activating price
price: provide information
from CHF ??.-

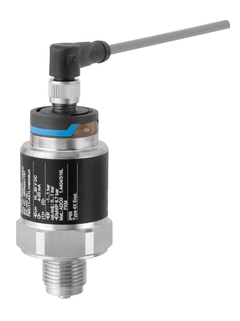

Cerabar PMC11
  • F
  • L
  • E
  • X
©Endress+Hauser

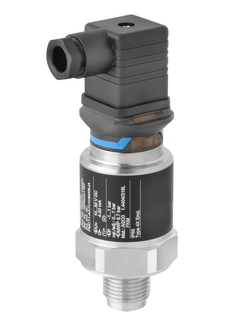

Cerabar PMC11
  • F
  • L
  • E
  • X
©Endress+Hauser

Specs at a glance

  • Accuracy

    0.5%

  • Process temperature

    -25 °C…+85 °C
    (-13 °F…+185 °F)

  • Pressure measuring range

    +400 mbar…+40 bar
    (+6 psi...+600 psi)

  • Measuring cell

    +400 mbar…+40 bar
    (+6 psi...+600 psi)

Field of application

The Cerabar PMC11 is the most price-attractive compact pressure transmitter in its segment. It features a capacitive, oil-free ceramic sensor and is able to measure gauge pressure from 400mbar up to 40bar. The PMC11 is designed for standard applications in the process industry and to withstand the conditions with the use of high quality materials like 316L and 99,9% Al2O3.

Pressure transducer with oil-free ceramic sensor to measure gauge pressure in gases or liquids.

  • Process connections: Threads

  • Process temperature: -25 to +85°C (-13 to +185°F)

  • Process pressure: 400mbar to +40bar (6 to 600psi)

  • Accuracy: ±0.5% of span

Benefits

  • Easy and time-saving installation and set up within the plant due to very compact construction and customizable measuring ranges

  • Reference accuracy of 0.5% together with high long- term stability and repeatability ensures a high quality of process monitoring in standard processes

  • Capacitive oil-free measuring cell with high abrasion resistance and 100% test coverage during production guarantees long process availability
