Specs at a glance
-
Accuracy
+/- 5 mm (0,2")
-
Process temperature
-40…+60°C
(-40…+140°F) -
Process pressure / max. overpressure limit
-1…3 bar (-14,50…43 psi)
-
Max. measurement distance
Standard: 8 m (26.2 ft)
With flooding protection tube: 12 m (39.4 ft) -
Main wetted parts
PVDF, PBT
Field of application

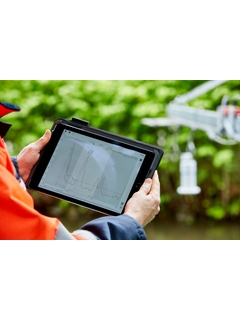

Micropilot FMR10 offers continuous non-contact level measurement and is a perfect application fit for the water & wastewater industry and utilities across all industries. FMR10 belongs to the first radars with Bluetooth® commissioning, operation and maintenance app. Signal curves can be shown via app on every Bluetooth®-enabled smartphone or tablet (iOS, Android). With the compact design, thanks to unique chip, the device is ideal for limited space applications.
Radar for continuous level measurement in liquids. For use in storage tanks, open basins, pump/lift stations or sewer management.
Process connections: Threads
Process temperature: -40 to +60°C (-40 to +140°F)
Process pressure: -1 to +3bar (-14.5 to +43psi)
Maximum measuring range: up to 12m (39ft) with mounted flooding tube protection
Accuracy: ±5mm (0.2")
Measuring frequency: 26GHz
Benefits
Non-contact radar with Bluetooth® commissioning, operation and maintenance app
Most compact radar due to unique radar chip design offering perfect fit in limited space applications
Best price-performance-ratio radar
Perfect application fit for water & wastewater and utilities in all industries (IP66, IP68 / NEMA4x /6P)
Full PVDF body to resist outdoor conditions, sealed wiring and fully potted electronics eliminates water ingress and allows operation under harsh environmental conditions
Easy setup with three main parameters suits for most applications
Simple, safe and secure wireless remote access via Bluetooth®
