Condumax CLS16B is an analog conductivity sensor for hygienic applications

Analog conductivity sensor
Condumax CLS16B

Contacting conductivity sensor for hygienic applications in the food & beverage and life sciences industries

CLS16B
Loading price
Prices temporarily unavailable
Price on request
activating price
price: provide information
from CHF ??.-

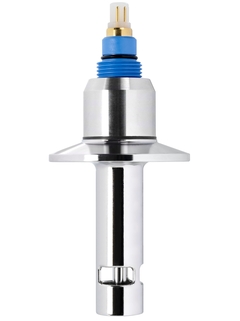

Analog contacting conductivity sensor Condumax CLS16B
  • F
  • L
  • E
  • X
©Endress+Hauser

Specs at a glance

  • Measurement range

    k=0,1: 0,04µS/cm - 500µS/cm

  • Process temperature

    Max. 120°C (150°C/30 min)
    max. 248°F (302°F/30 min.)

  • Process pressure

    max. 12 bar at 20°C
    max.174 psi at 68°F

Field of application

Condumax CLS16B is an analog sensor for precise measurement in the low conductivity range of pure and ultrapure water. Its certified hygienic design complies with the relevant standards EHEDG, USP Class VI and ASME-BPE. Various hygienic process connections ensure the perfect fit for your process.

Condumax CLS16B measures conductivity in pure and ultrapure water for the monitoring of:

  • Ion exchangers

  • Reverse osmosis

  • Distillation

  • Water for injection (WFI)

With its international explosion protection approvals, such as ATEX, FM, CSA and NEPSI, the analog sensor is suitable for hazardous area use.

Benefits

  • Perfectly suited to life sciences and food & beverage: Complies with EHEDG, ASME, FDA and USP Class VI

  • Hygienic: Autoclavable, sterilizable and suitable for cleaning-in-place (CIP) and sterilization-in-place (SIP)

  • Accurate: Cell constant of the sensor is measured individually

  • Robust: Electropolished stainless steel body for corrosion-free operation and easy cleaning

  • Long-operating life: Replaceable, hygienic EPDM/PEEK sealing

Videos

  • The conductivity of a liquid can be measured using the contacting or inductive measuring principles. This video shows what it is about and how these measuring principles work.
