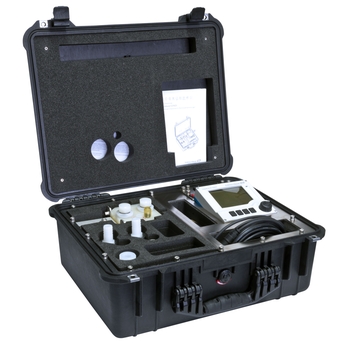

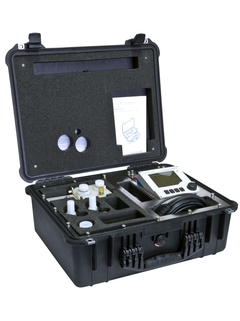

Conducal CLY421 is the ideal calibration tool for conductivity measuring devices in ultrapure water applications. It offers certified comparison measurement and full traceability of your instruments' verification and calibration. Furthermore, the tool is fully compliant with the requirements of the pharmaceutical industry. Conducal comes in a robust, portable hard-top case with battery-powered Liquiline transmitter, allowing flexible calibration in the field.
Conducal CLY421 is a portable calibration and verification tool for quality-relevant conductivity measurements. It is suitable for all ultrapure water applications up to 20 µS/cm:
Life science industry
Food industry
Semiconductor industry
Its traceability to national standards (NIST and DAkkS) fulfills the highest regulatory requirements.
Benefits
Factory calibration traceable to standard reference material by NIST and DAkkS
Factory calibration of Conducal according to ASTM D-5391
Flow assembly with adjusting and monitoring functions according to ASTM D-5391
Accurate calibration by direct use of process sample and comparison with the reference system
Rapid setup of comparison measurement with practical flow assembly
Flexible calibration in the field with carrying case and battery-powered Liquiline transmitter
AVR Waste in Botlek, Rotterdam, processes up to 1.7 million tons of residual waste per year. Discover how they optimized their pH measurement thanks to Endress+Hauser
Holiferm produces sustainable biosurfactants using a patented gravity separation fermentation process. The company was seeking a way to automate the measurement of the critical phase separation step.
Using seawater to flush toilets can save a lot of drinking water. To ensure a constant water supply, the sensors used must function reliably to meet the water quality objectives (WQO).
Calibration of conductivity measuring loops in ultra-pure water applications in the pharmaindustry; calibration of quality-relevant process measurements in the ultra-pure water range up to 20µS/cm
Characteristic
factory calibrated measuring case with certificate for comparison measurement in ultra-pure water up to 20µS/cm
Measuring range
0,04µS/cm - 20µS/cm
Measuring principle
conductiv conductivity measurement
Design
compact case includes factory calibrated conductivity loop and flow-through assembly
Material
case : injection molded high performance resin Conductivity sensor CLS15D: SS 316 L, PES-GF20 flow-through assembly: PVDF
Dimension
20.9" x 17.4" x 8.5"
Process temperature
0.. 100C 32 .. 210F
Process pressure
87 psi
Ingress protection
IP67 at closed case without power cord
Additional certifications
factory calibration certificate according ASTM 5391-93, traceable to SRM from NIST and DaakS
