Advanced Data Manager Memograph M, RSG45

Memograph M RSG45 data manager

Advanced data and energy manager with up to 20 analog/HART® inputs and 14 digital inputs

RSG45
Please Wait (spinning wheel)
Loading price
Prices temporarily unavailable
Price on request
activating price
price: provide information
from CHF ??.-

Specs at a glance

  • Input

    0...20 universal
    HART
    6…14 digital

  • Output

    2 analog

  • Display

    7“ TFT

  • Storage/Recording

    internal memory
    SD card
    USB flash drive

  • Calculations

    Mass/heat quantity
    heat quantity difference

Field of application

The Advanced Data Manager is a flexible and powerful system for organizing process values. Thanks to its intuitive operation, Memograph M adapts quickly and easily to any application. The process values are clearly presented on the display and logged safely, limits are monitored and analyzed. Via communication protocols, the measured and calculated values can be easily transferred to higher-level systems and plant modules can be interconnected. Also available as DIN rail version without display.

The solution for all your tasks. For example, for:

  • Process measuring technology

  • Power stations and energy supply

  • Steam boiler monitoring/efficiency calculation

  • Food and pharmaceutical industry

  • Plant and apparatus engineering and construction; Milk pasteurization plants

  • Environmental and climate measuring technology; Storm overflow control

  • Quality assurance and production

  • Batch analysis; Tele-Alarm functions

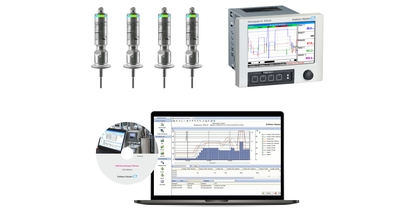

  • iTHERM TrustSens Calibration Monitoring

  • Testing bays and laboratory applications

Benefits

  • High degree of data security: tamper-proof data storage and personalized access authorization with electronic signature (FDA 21 CFR 11)

  • HART input card: HART sensors directly connected provide accurate process values for calculation and logging

  • HART gateway: time-saving direct access to HART sensors in the field with FieldCare using Memograph M without interrupting the measuring loop

  • Stainless steel front with touch operation: trouble-free operation in demanding environments such as hygienic or hazardous areas.

    DIN rail version: compact device with small dimensions for cabinet mounting or remote field applications.

  • System capability: supports common fieldbuses (Modbus, Profibus DP, PROFINET, EtherNet/IP) for fast integration into diverse systems

  • Integrated Web server: remote access to device operation and visualization for lower maintenance costs

  • WebDAV: files saved on SD card transmitted directly to a PC via HTTP without any additional software.
